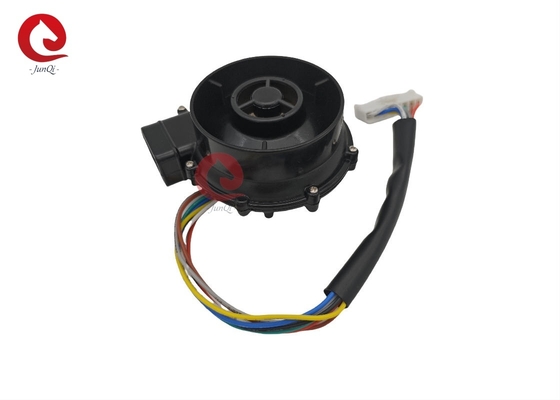

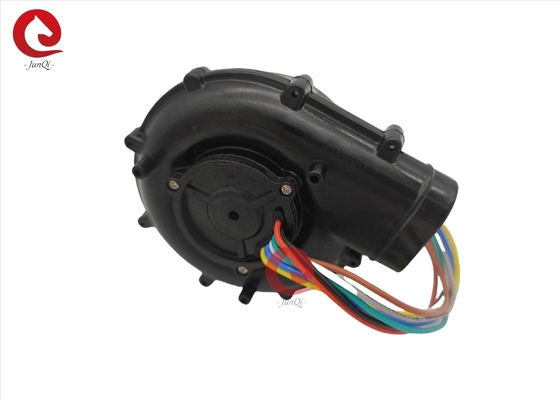

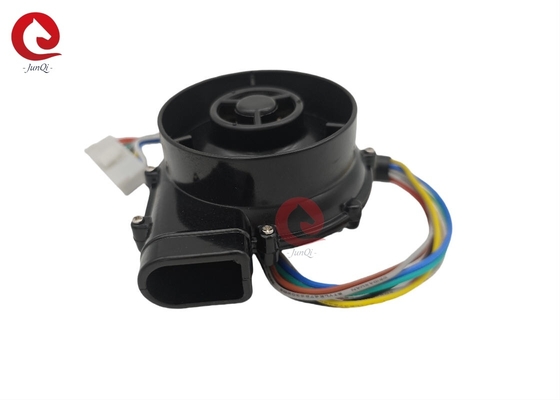

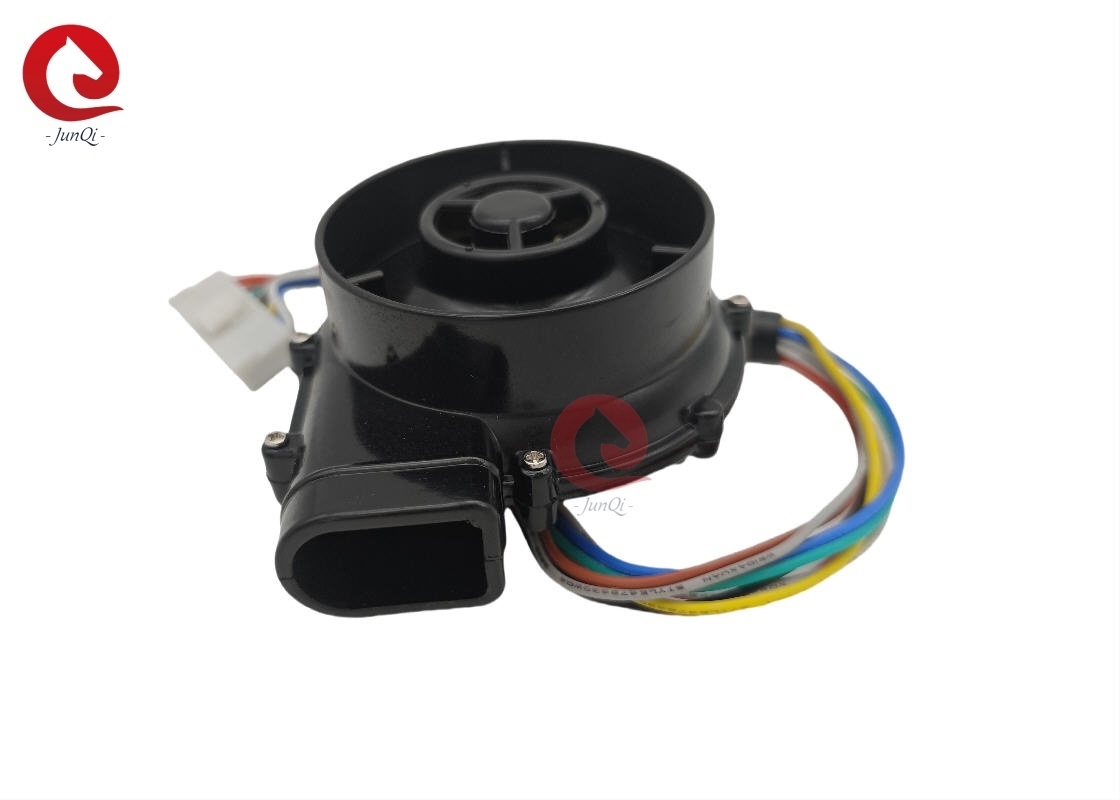

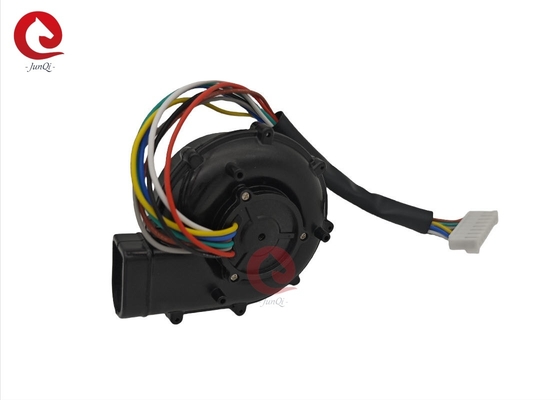

JUNQI OWB8040-24V 265L/min Max. Air Flow Slinet Poratble Brushless DC Air Blower For CPAP/ Seeder
Blower Basic Technical Parameters:
| Item |
Description |
| Model |
OWB8040-24V |
| Rated Voltage |
24VDC |
| Rated Current |
1.5 A |
| Rated Power |
36W |
| Free Blowing Speed |
26000rpm |
| Max.air pressure( Flow=0) |
4Kpa |
| Power@Max.pressure |
16W |
| Speed@Max.pressure |
32200rpm |
| Max. air Flow(Pressure=0) |
265L/min |
| Power@ Max.flow |
31W |
| Speed@Max.flow |
26255rpm |
| Min. Air flow |
20L/min |
Overall dimensions:
Wiring diagram:
Performance Curve:
Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.
Applications:
Drone, Beauty cooling equipment, Turbocharged, Hydrogen Energy Vehicles, Lidar Clearning System for L4, 3D Printer, Vacuum Cleaner, Sleep Apnea Machine, Air Cushion Machine, Environmental Sampling Equipment, Sweeping Robot, Marshmallow Machine, Popcorn Machine, Spa Machine, Cough Assistant Machine, Sprayer Extermination Equipment, Commercial Stoves, Smoke Evacuation System, Emergency Ventilator, Dental Equipment,Shock type sputum vest, Toliet Seat Provides Air, Hand Dryer, Coffee Bean Poasting Machine, Air Cushion Bed, Protective Mask, Protective Suit.....
